SpatialIndex::IShape Class Reference

#include <SpatialIndex.h>

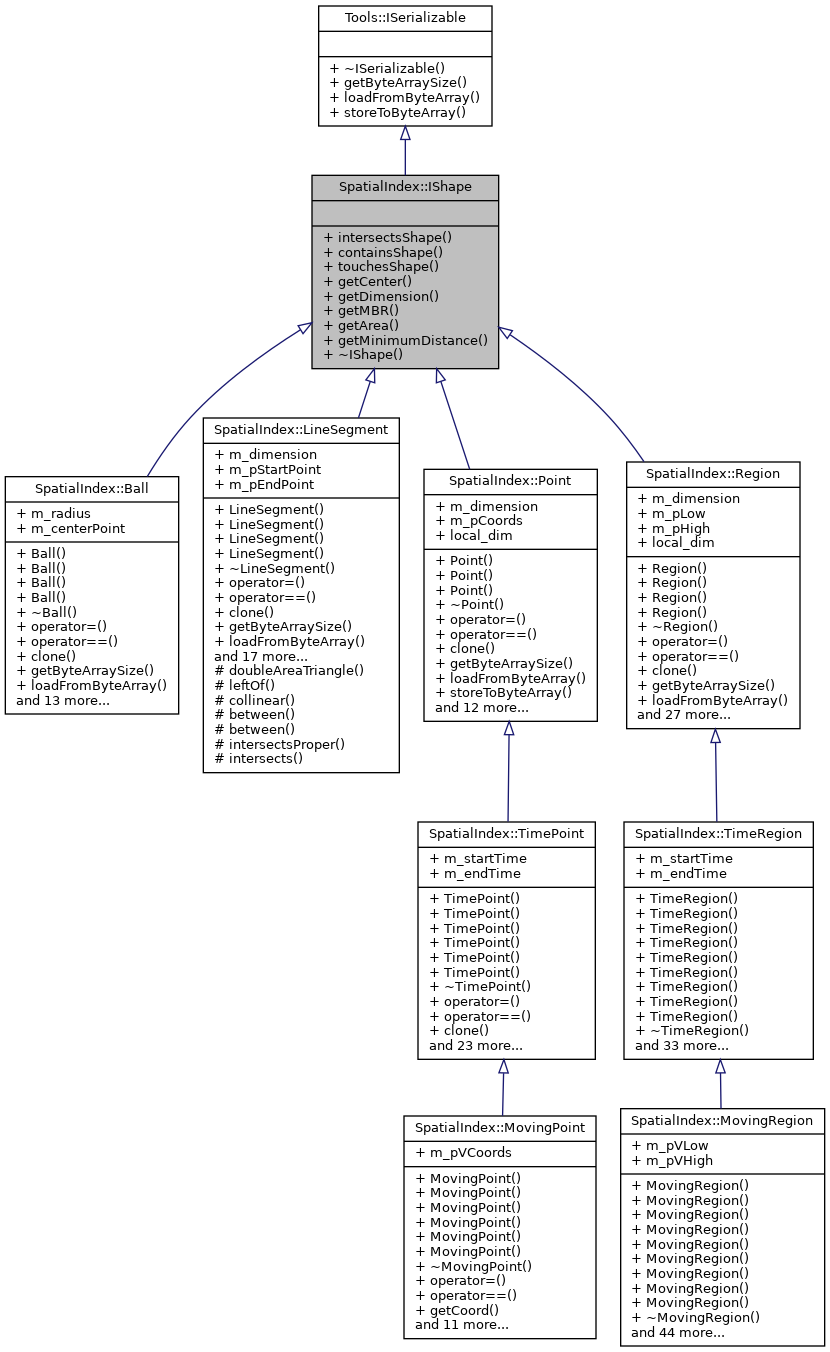

Inheritance diagram for SpatialIndex::IShape:

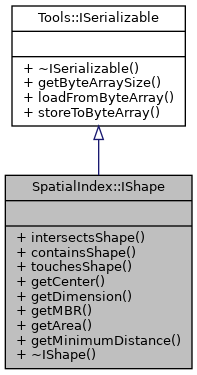

Collaboration diagram for SpatialIndex::IShape:

Public Member Functions
virtual bool	intersectsShape (const IShape &in) const =0
virtual bool	containsShape (const IShape &in) const =0
virtual bool	touchesShape (const IShape &in) const =0
virtual void	getCenter (Point &out) const =0
virtual uint32_t	getDimension () const =0
virtual void	getMBR (Region &out) const =0
virtual double	getArea () const =0
virtual double	getMinimumDistance (const IShape &in) const =0
	~IShape () override=default
Public Member Functions inherited from Tools::ISerializable
virtual	~ISerializable ()=default
virtual uint32_t	getByteArraySize ()=0
virtual void	loadFromByteArray (const uint8_t *data)=0
virtual void	storeToByteArray (uint8_t **data, uint32_t &length)=0

Detailed Description

Definition at line 68 of file SpatialIndex.h.

Constructor & Destructor Documentation

~IShape()

SpatialIndex::IShape::~IShape ( )

overridedefault

Member Function Documentation

containsShape()

virtual bool SpatialIndex::IShape::containsShape ( const IShape &  in ) const

pure virtual

Implemented in SpatialIndex::Region, SpatialIndex::Point, SpatialIndex::LineSegment, and SpatialIndex::Ball.

Referenced by SpatialIndex::RTree::RTree::containsWhatQuery(), and SpatialIndex::RTree::RTree::internalNodesQuery().

Here is the caller graph for this function:

getArea()

virtual double SpatialIndex::IShape::getArea ( ) const

pure virtual

Implemented in SpatialIndex::Region, SpatialIndex::Point, SpatialIndex::LineSegment, and SpatialIndex::Ball.

getCenter()

virtual void SpatialIndex::IShape::getCenter ( Point &  out ) const

pure virtual

Implemented in SpatialIndex::Ball, SpatialIndex::Region, SpatialIndex::Point, and SpatialIndex::LineSegment.

getDimension()

virtual uint32_t SpatialIndex::IShape::getDimension ( ) const

pure virtual

Implemented in SpatialIndex::Region, SpatialIndex::Point, SpatialIndex::LineSegment, and SpatialIndex::Ball.

Referenced by SpatialIndex::Ball::containsShape(), SpatialIndex::MVRTree::MVRTree::containsWhatQuery(), SpatialIndex::RTree::RTree::containsWhatQuery(), SpatialIndex::TPRTree::TPRTree::containsWhatQuery(), SpatialIndex::MVRTree::MVRTree::deleteData(), SpatialIndex::RTree::RTree::deleteData(), SpatialIndex::TPRTree::TPRTree::deleteData(), SpatialIndex::MVRTree::MVRTree::insertData(), SpatialIndex::RTree::RTree::insertData(), SpatialIndex::TPRTree::TPRTree::insertData(), SpatialIndex::RTree::RTree::internalNodesQuery(), SpatialIndex::MVRTree::MVRTree::intersectsWithQuery(), SpatialIndex::RTree::RTree::intersectsWithQuery(), SpatialIndex::TPRTree::TPRTree::intersectsWithQuery(), SpatialIndex::MVRTree::MVRTree::nearestNeighborQuery(), SpatialIndex::TPRTree::TPRTree::nearestNeighborQuery(), SpatialIndex::RTree::RTree::nearestNeighborQuery(), and SpatialIndex::RTree::RTree::selfJoinQuery().

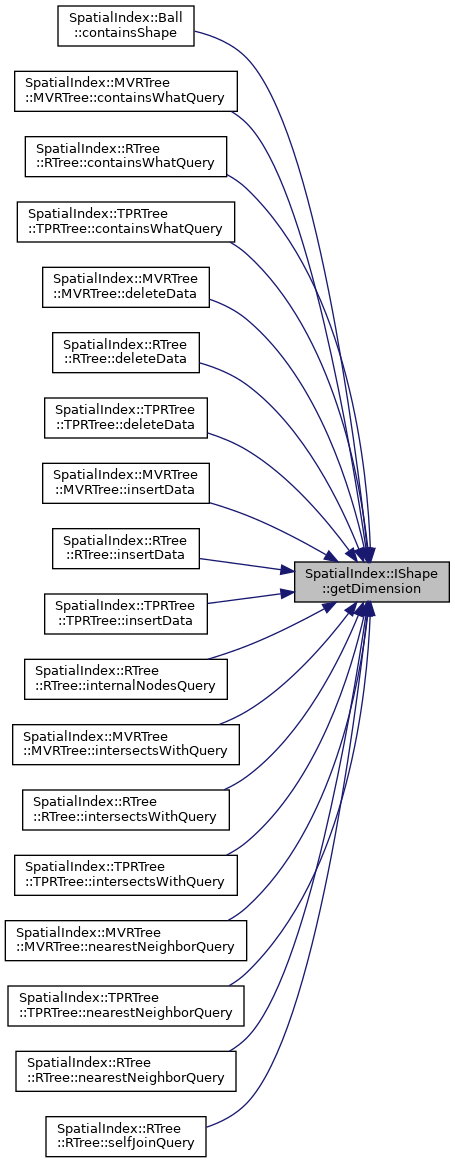

Here is the caller graph for this function:

getMBR()

virtual void SpatialIndex::IShape::getMBR ( Region &  out ) const

pure virtual

Implemented in SpatialIndex::Ball, SpatialIndex::Region, SpatialIndex::Point, and SpatialIndex::LineSegment.

Referenced by SpatialIndex::MVRTree::MVRTree::deleteData(), SpatialIndex::RTree::RTree::deleteData(), SpatialIndex::TPRTree::TPRTree::deleteData(), BoundsQuery::getNextEntry(), IndexItem_GetBounds(), SpatialIndex::MVRTree::MVRTree::insertData(), SpatialIndex::RTree::RTree::insertData(), SpatialIndex::TPRTree::TPRTree::insertData(), and SpatialIndex::RTree::RTree::selfJoinQuery().

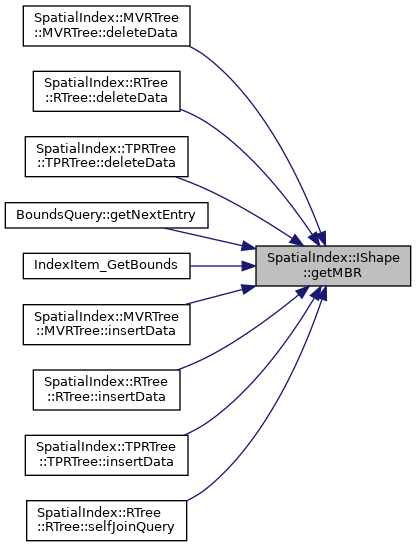

Here is the caller graph for this function:

getMinimumDistance()

virtual double SpatialIndex::IShape::getMinimumDistance ( const IShape &  in ) const

pure virtual

Implemented in SpatialIndex::Region, SpatialIndex::Point, SpatialIndex::LineSegment, and SpatialIndex::Ball.

Referenced by SpatialIndex::Ball::getMinimumDistance(), SpatialIndex::Ball::intersectsShape(), and SpatialIndex::Ball::touchesShape().

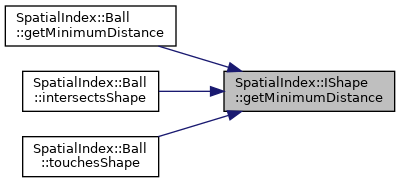

Here is the caller graph for this function:

intersectsShape()

virtual bool SpatialIndex::IShape::intersectsShape ( const IShape &  in ) const

pure virtual

Implemented in SpatialIndex::Region, SpatialIndex::Point, SpatialIndex::LineSegment, and SpatialIndex::Ball.

Referenced by SpatialIndex::RTree::RTree::containsWhatQuery(), and SpatialIndex::RTree::RTree::internalNodesQuery().

Here is the caller graph for this function:

touchesShape()

virtual bool SpatialIndex::IShape::touchesShape ( const IShape &  in ) const

pure virtual

Implemented in SpatialIndex::Region, SpatialIndex::Point, SpatialIndex::LineSegment, and SpatialIndex::Ball.

---

The documentation for this class was generated from the following file:

• SpatialIndex.h
